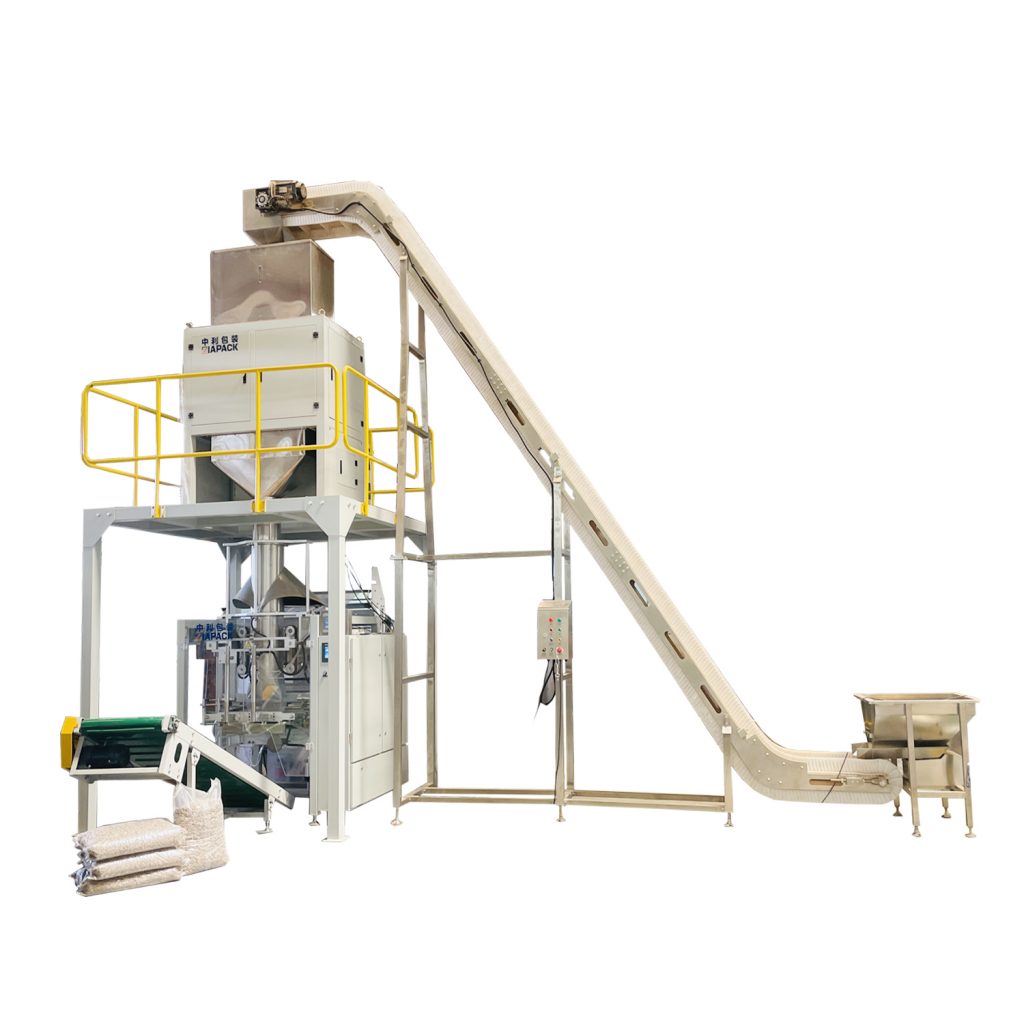

Automatic15-20 kg wooden pellets bag forming filling packaging machine
מבוא :
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
פרמטרים טכניים:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
דרישת אוויר דחוס: 0.6Mpa 0.65m³/min
Reel outer diameter: 450mm
קוטר פנימי של ליבה: 75 מ"מ
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
תכונות ומאפיינים עיקריים:
- מגוון רחב של פאוצ'ים: פאוצ'ים כרית וגוסט.
- מהירות גבוהה: 20-50 שקיות/דקה
- קל לתפעול: בקר PLC ומסך מגע צבעוני, חיווי תקלה במסך המגע.
- קל להסתגל: רק כ 10 דקות כדי לשנות שקיות שונות.
- בקרת תדרים: ניתן לכוונן את המהירות על-ידי המרת תדר בטווח.
- אוטומציה גבוהה: unmanned בתהליך שקילה ואריזה, אזעקה מכונה אוטומטית כאשר כשלון.
- בטיחות והיגיינה:
- אין סרט, המכונה תזעיק.
- אזעקת מחשב ולהפסיק כאשר לחץ אוויר לקוי.
- מגן בטיחות עם מתגי בטיחות, אזעקות מחשב והפסיק עם פתיחת הבטיחות.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.

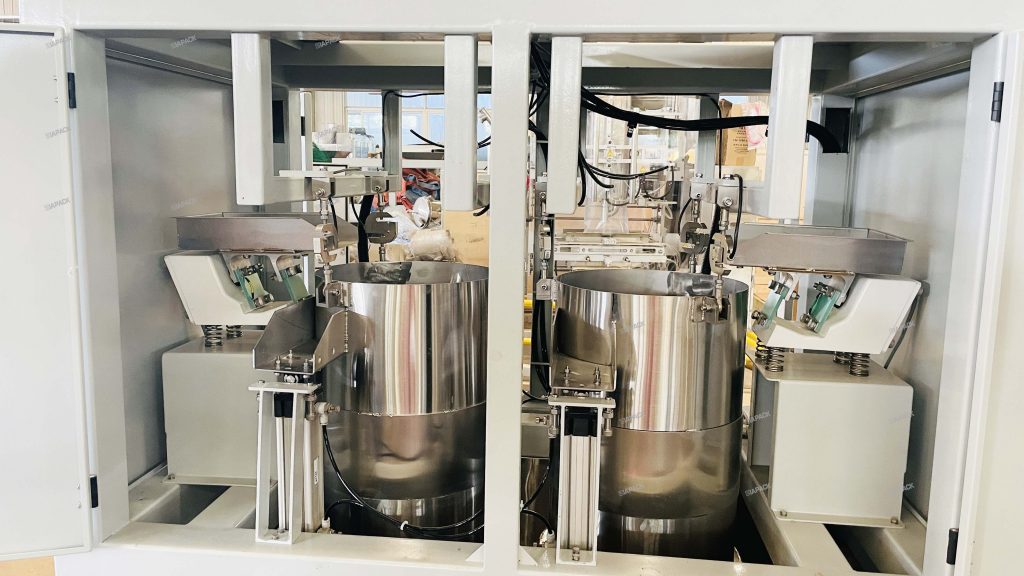

- ZLC2-15k double bucket weighing machine
מבוא :
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
מאפיינים:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
